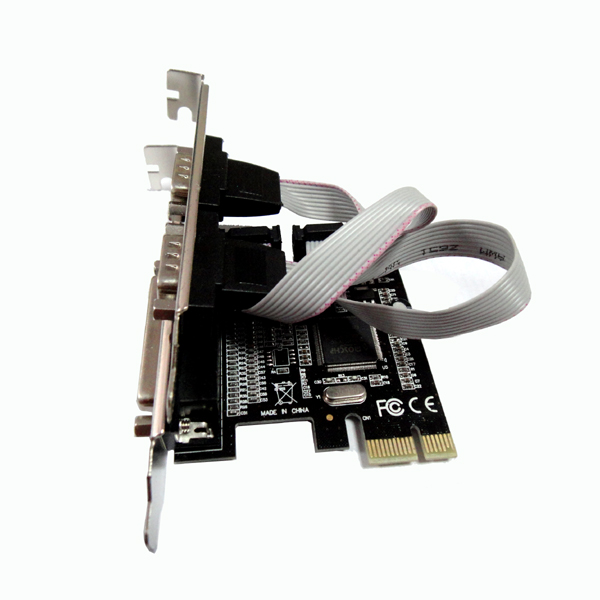

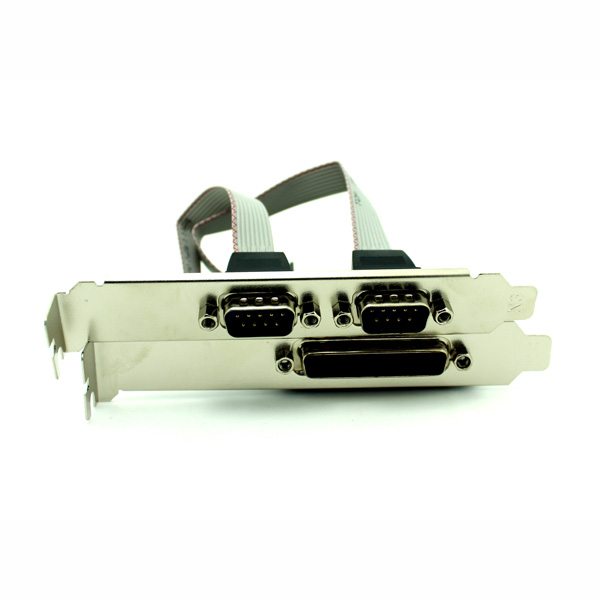

2-port DB-9 Serial (RS-232) and 1-port DB-25 Parallel Printer (LPT1) PCI-e Controller Card
product number N-EXP1P2S, Combo 2-port DB-9 Serial (RS-232) and 1-port DB-25 Parallel Printer (LPT1) PCI-e Controller Card, MCS9901 Chipset with Low Profile Brackets
Product Category： Serial/Paraller Card
Product Description
-
Combo 2-port DB-9 Serial (RS-232) and 1-port DB-25 Parallel Printer (LPT1) PCI-e Controller Card, MCS9901 Chipset with Low Profile Brackets
Description: Easily add 2 Serial and 1 Printer ports to desktop PCs. Serial ports are ideal for connecting to modem, cellular phone, PDA, ISDN terminal adapter, satellite receiver, graphic tablet, bar code scanner, label printer, automated teller machine, GPS, finger print identification, Infra-Red transceiver, packet radio, magnetic card reader, Pos devices, multi-modem dail-up server, digital camera, automation interface, and card reader. Keeps old Serial devices alive
Features:
Single-Lane (x1) PCI-Express with Throughput up to 2.5Gbps
Serial Port (RS-232) Interface:
Compatible with Industrial Standard 16C550 UART
On Chip 256-byte Depth FIFO in Transmit
Transfer Data Rates up to 250Kbps on Each Port
Supports Hardware and Software Flow Control
Supports 5, 6, 7, 8-bit Serial Format
Parallel Port Interface:
IEEE 1284 Compatible Parallel Port
Fast Data Rate up to 1.5Mbps
