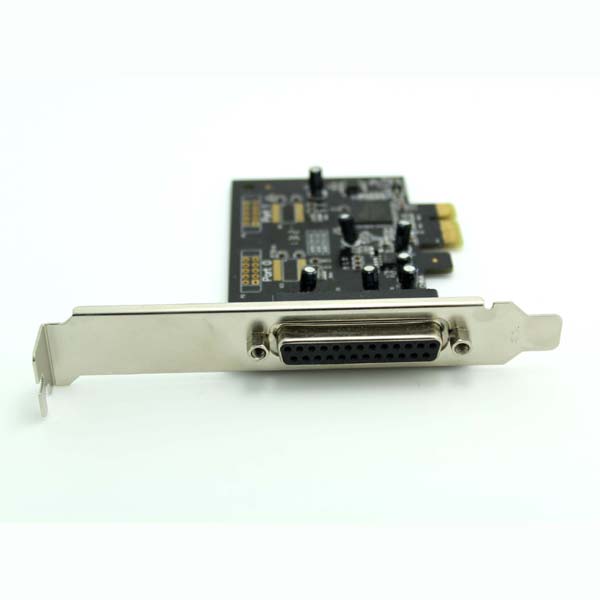

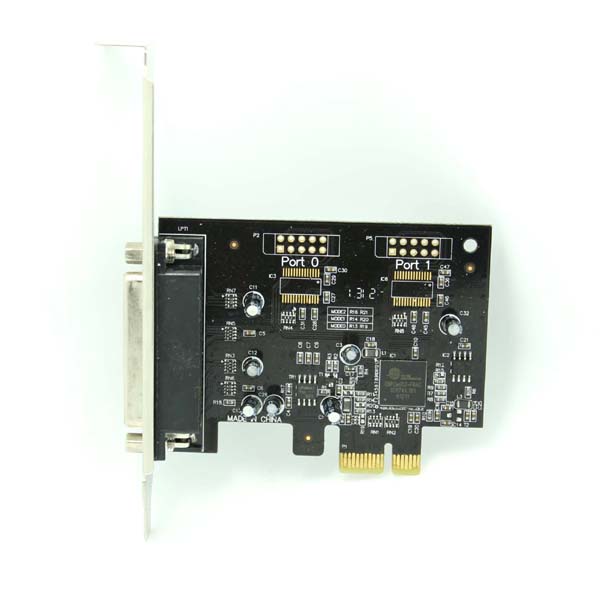

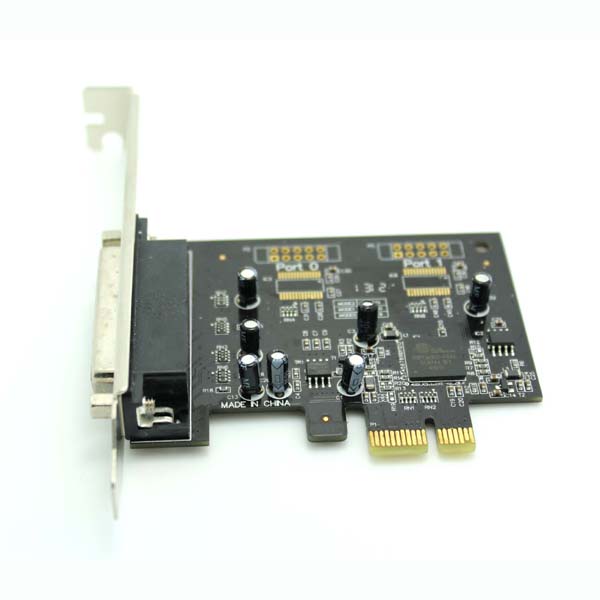

1Port Parallel PCI-express Cards

product number N-EXP1P, 1Port Parallel PCI-express Cards

Product Category： Serial/Paraller Card

Features:

PCI-Express 1x Printer/Parallel Port Card

1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel

1-Parallel port with transfer rate up to 1.5Mbyte/s

Compliant with PCI-Express Revision 1.0a

Compatible to IEEE 1284 Printer Port

Fast Data Rates up to 1.5 MBytes/sec

Built-in 16 Byte FIFO

Support Plug and Play, SPP, PS2, EPP, ECP Compatible IEEE 1284 Printer Port

This interface speeds the frequency of data transfer and the high performance of PCI express bus

Supports PCI express 2.0, compatible with other PCI express interface

Driver supports Windows 98SE/DOS/Linux/XP/2003/2008/32/64bit Vista/7 /8 operating system

Parallel port:

IEEE 1284 compliant parallel port interface, supports SPP/PS2/Epp/ECP modes and centronics interface

Faster data rates up to 1.5Mbps for parallel port
