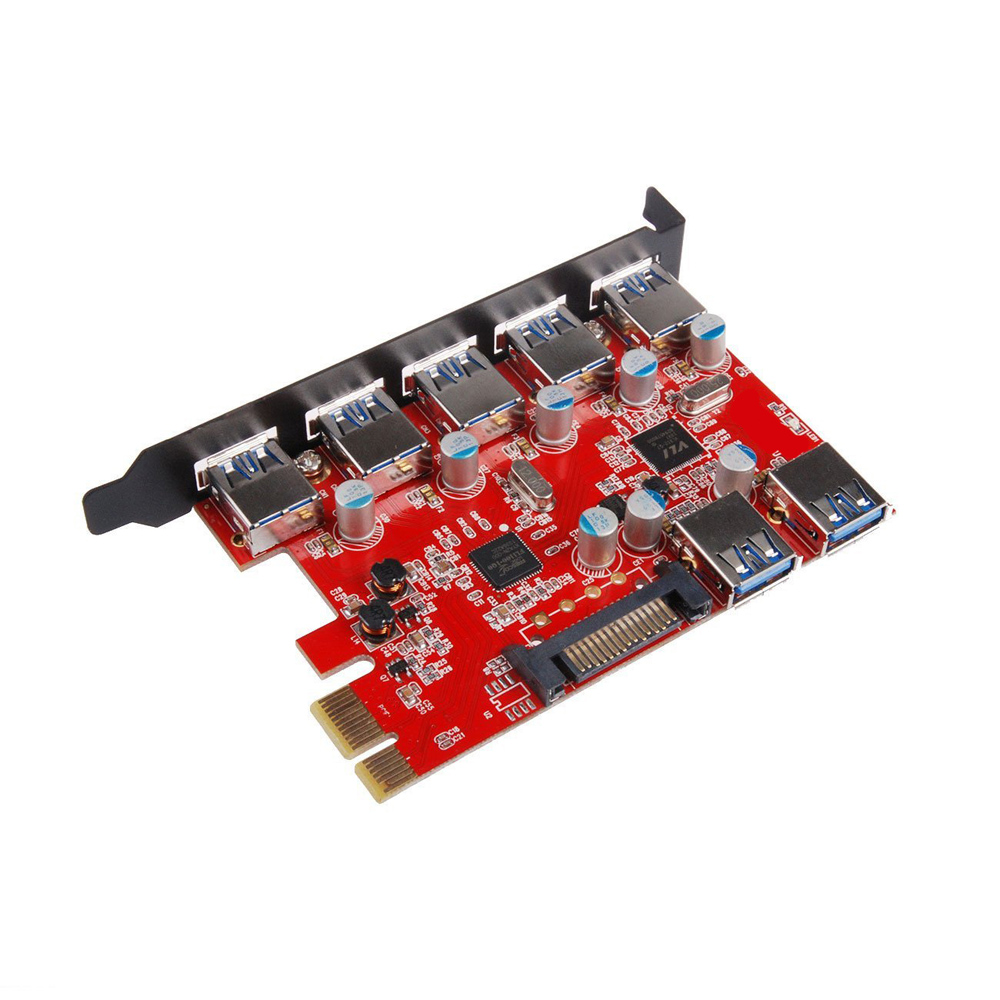

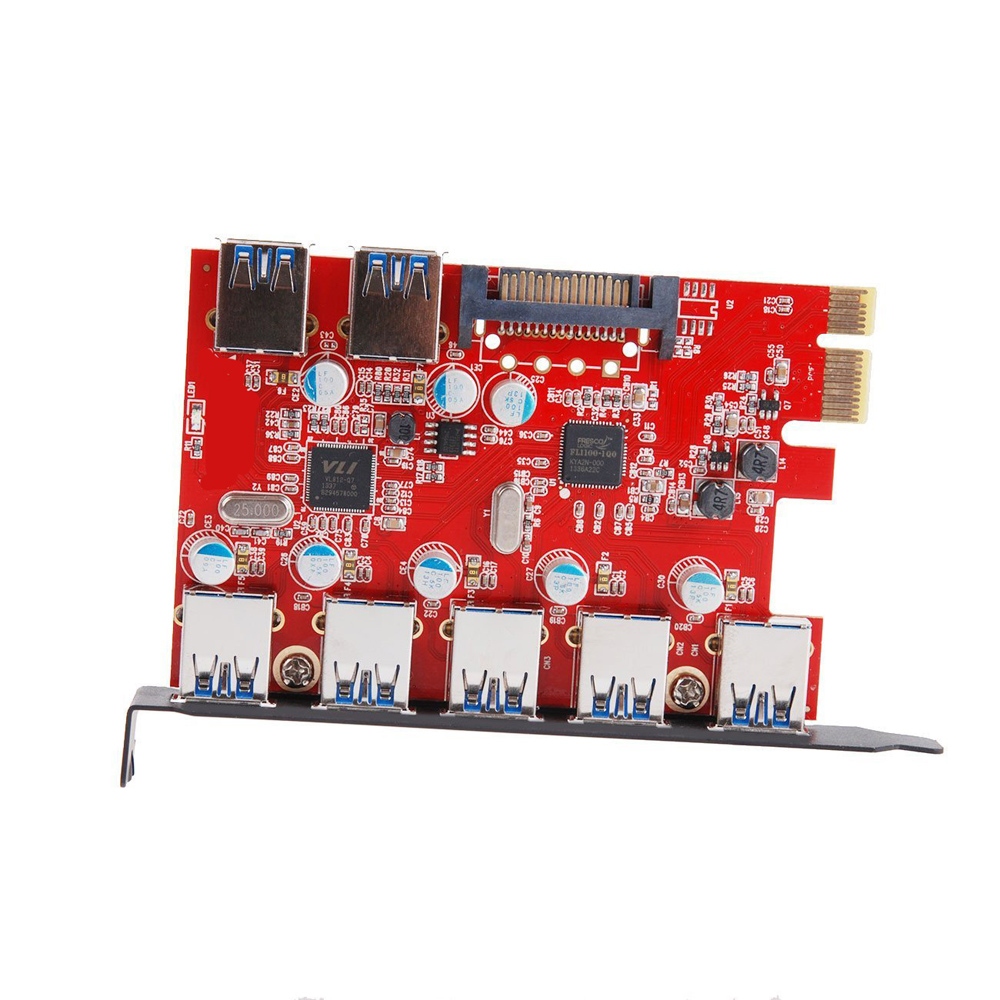

Superspeed 7 Ports PCI-E to USB 3.0 Expansion Card - Interface USB 3.0 5-Port & 2 Rear USB3.0 Port Express Card

product number   N-EXPU7A, Superspeed 7 Ports PCI-E to USB 3.0 Expansion Card - Interface USB 3.0 5-Port & 2 Rear USB3.0 Port Express Card Desktop with 15 pin SATA Power Connector [ Include with A 4pin to 2x15pin Cable + A 15pin to 2x 15pin SATA Y-Cable ]

Product Category: USB 3.0/3.1Card

Product Description

    Specifications
      • Type: PCI Express to USB Card
      • External USB Ports:7 port USB 3.0
      • Internal USB Ports: USB 3.0
      • External Ports:7port USB 3.0
      • Data Transfer Rate: Up to 5.0 Gbps
      • Operating Systems Supported: Windows® XP/Vista/7/8/8.1/10 (32/64 bit)

    Features
      • Chipset: Renesas uPD720201
     • Supports the following speed data rates as follows:
      • Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
      • Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
      • Support USB Battery Charging Specification Revision 1.2
      • Fully compliant with PCI Express Base Specification Revision 2.0
      • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
      • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
      • Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
      • Built-in 4-pin power connector for receiving extra power supply from system
      • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
    Package
    1x USB3.0 PCI-E expansion card
    1x CD Driver
