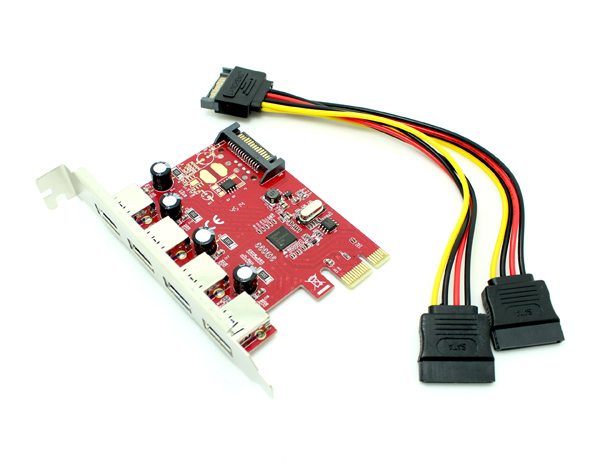

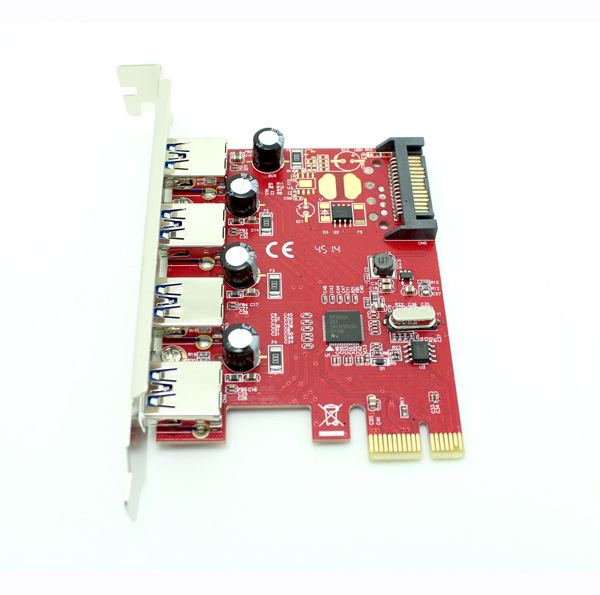

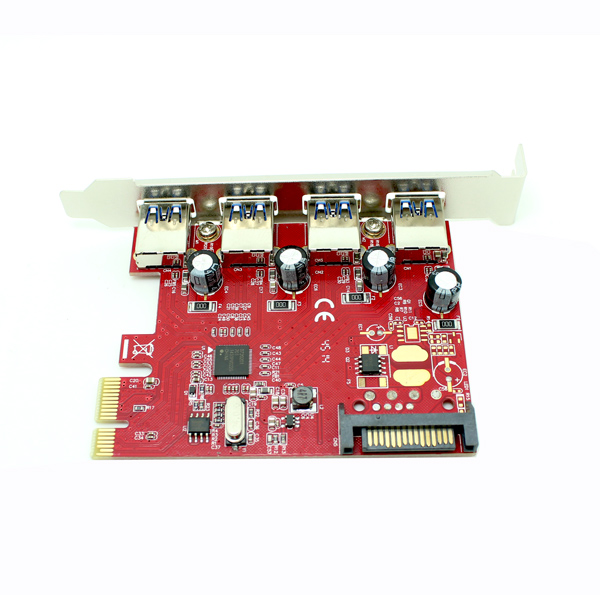

Superspeed 4 Ports PCI-E to USB 3.0 Expansion Card - Interface USB 3.0 4-Port Express Card Desktop with 15 Pin SATA Power Connector, [ Include with A 4pin to 2x15pin Cable + A 15pin to 2x 15pin SATA Y-Cable ]
product number N-EXPU4C, Superspeed 4 Ports PCI-E to USB 3.0 Expansion Card - Interface USB 3.0 4-Port Express Card Desktop with 15 Pin SATA Power Connector, [ Include with A 4pin to 2x15pin Cable + A 15pin to 2x 15pin SATA Y-Cable ]
Product Category： USB 3.0/3.1Card
Product Description
-
Specifications
• Type: PCI Express to USB Card
• External USB Ports: 4 port USB 3.0
• Internal USB Ports: USB 3.0
• External Ports: 4 port USB 3.0
• Data Transfer Rate: Up to 5.0 Gbps
• Operating Systems Supported: Windows® XP/Vista/7/8/8.1 /10(32/64 bit)
Features
• Chipset: Renesas uPD720201
• Supports the following speed data rates as follows:
• Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
• Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
• Support USB Battery Charging Specification Revision 1.2
• Fully compliant with PCI Express Base Specification Revision 2.0
• Compliant with Universal Serial Bus 3.0 specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Built-in 4-pin power connector for receiving extra power supply from system
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Package
1x USB3.0 PCI-E expansion card
1x CD Driver
1x Mounting screw
1x 4pin to 2x15pin cable (the cable in older computers without 15pin SATA power connector is used to 4pin convert Molex to SATA ports)
1x 15pin to 2x 15pin SATA Y-cable
