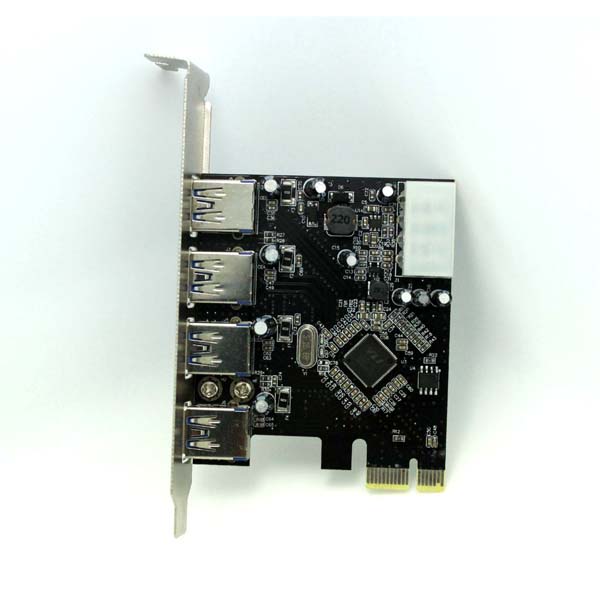

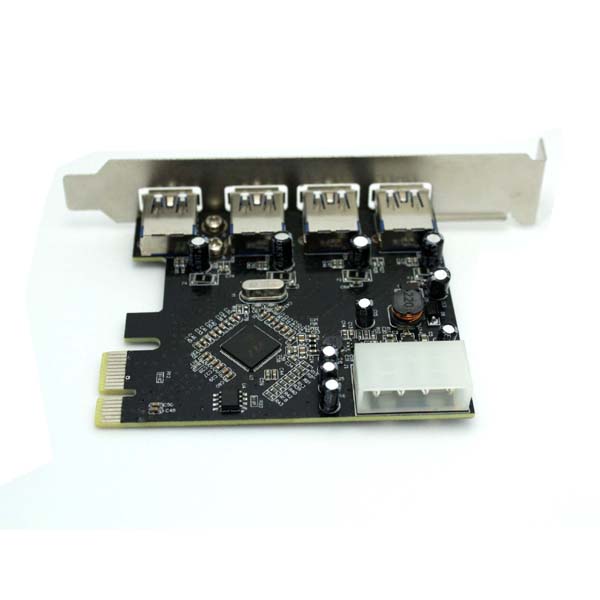

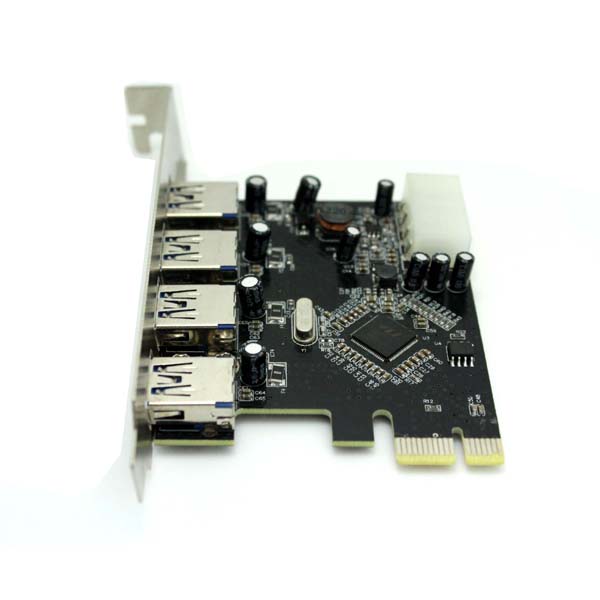

Super Speed 5 Gbps 4 Ports USB 3.0 PCI-E PCI Express Expansion Hub Card Adapter PC Computer Upgrade

product number N-EXPU4A

Product Category： USB 3.0/3.1Card

Product Description

Specifications
  • Type: PCI Express to USB Card
  • External USB Ports: 4 port USB 3.0
  • Internal USB Ports: USB 3.0
  • External Ports: 4 port USB 3.0
  • Data Transfer Rate: Up to 5.0 Gbps
  • Operating Systems Supported: Windows® XP/Vista/7/8/8.1 (32/64 bit)
Features
  • Chipset: VIA805
  • Supports 4 downstream ports for all speeds
  • Supports the following speed data rates as follows:
  • Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
  • Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
  • Support USB Battery Charging Specification Revision 1.2
  • Fully compliant with PCI Express Base Specification Revision 2.0
  • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
  • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
  • Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Built-in 4-pin power connector for receiving extra power supply from system
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
