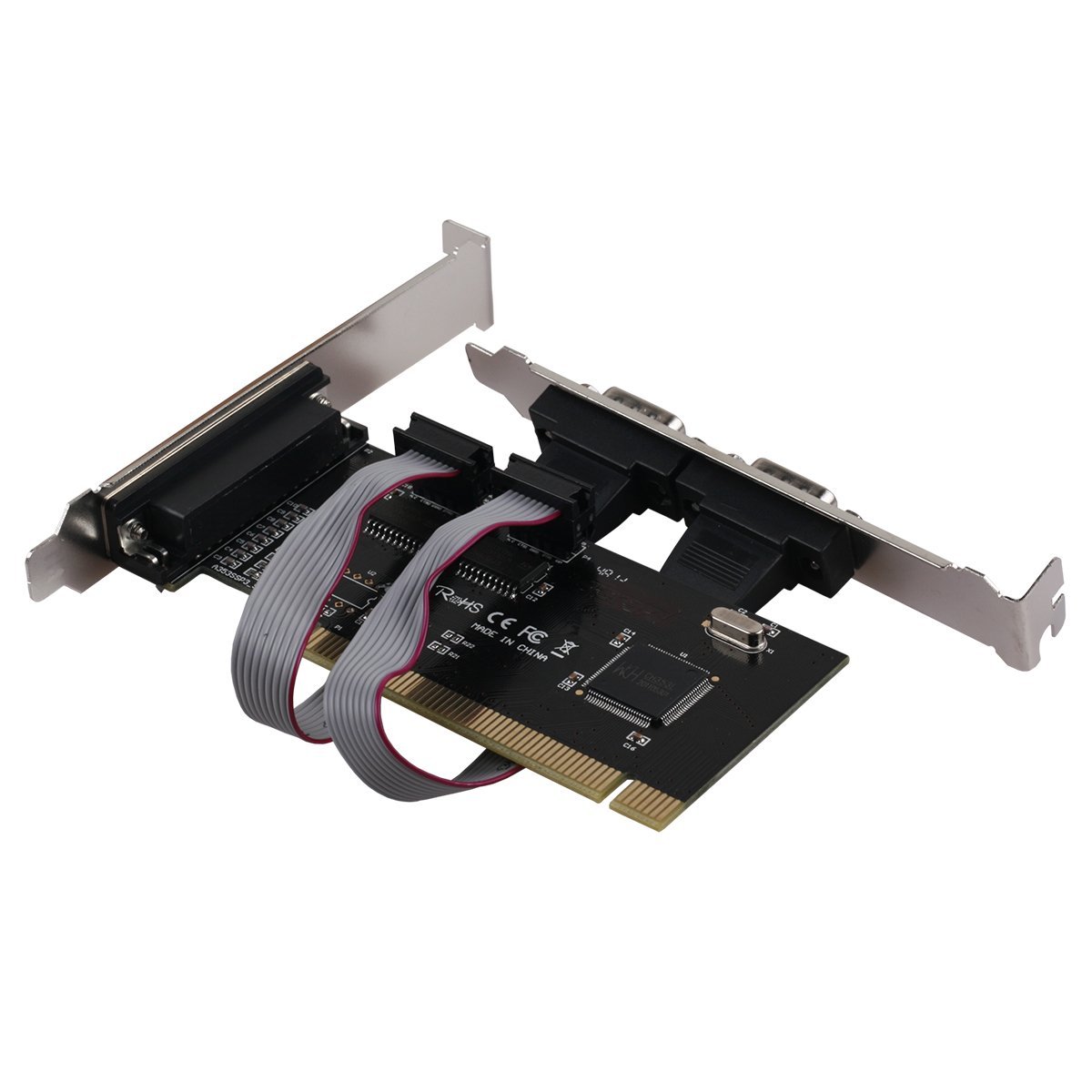

Db9 Rs232 9 Pin Serial Db25 Parallel Port Printer Combo PCI Card N-W352-1P2S
product number N-W352-1P2S,
Product Category： PCI I/O Controller
Product Description
-
Features:
This is serial RS232 + parallel DB25 IEEE 1284 printer PCI card.
It adds 2 male serial RS232 and 1 female parallel DB25 IEEE 1284 printer ports to your computer.
One 25 pin DB25 standard ECP/EPP/SPP parallel port.
Two standard RS232 9 pin serial ports.
SPP, PS2, EPP, ECP compatible IEEE 1284 printer port.
Data transfer rate of the Parallel Port support up to 1.5MB/Sec.
Data transfer rate of Serial Port support up to 115200bps.
Built in 16 Byte FIFO.
Compatible with standard 16C550 UART with 16 byte transmit-receive FIFO and PCI rev 2.1.
Plug-and-play, automatically selects IRQ and I/O address.
It is ideal for printers, external storage media or parallel port scanners.
System Required: Windows 98SE/ME/2000/XP/Vista/7/8/10 NT4.0, Linux, DOS.
Dimensions: 12cm x 12cm x 1.9cm - 4.72inch x 4.72inch x 0.75inch.
