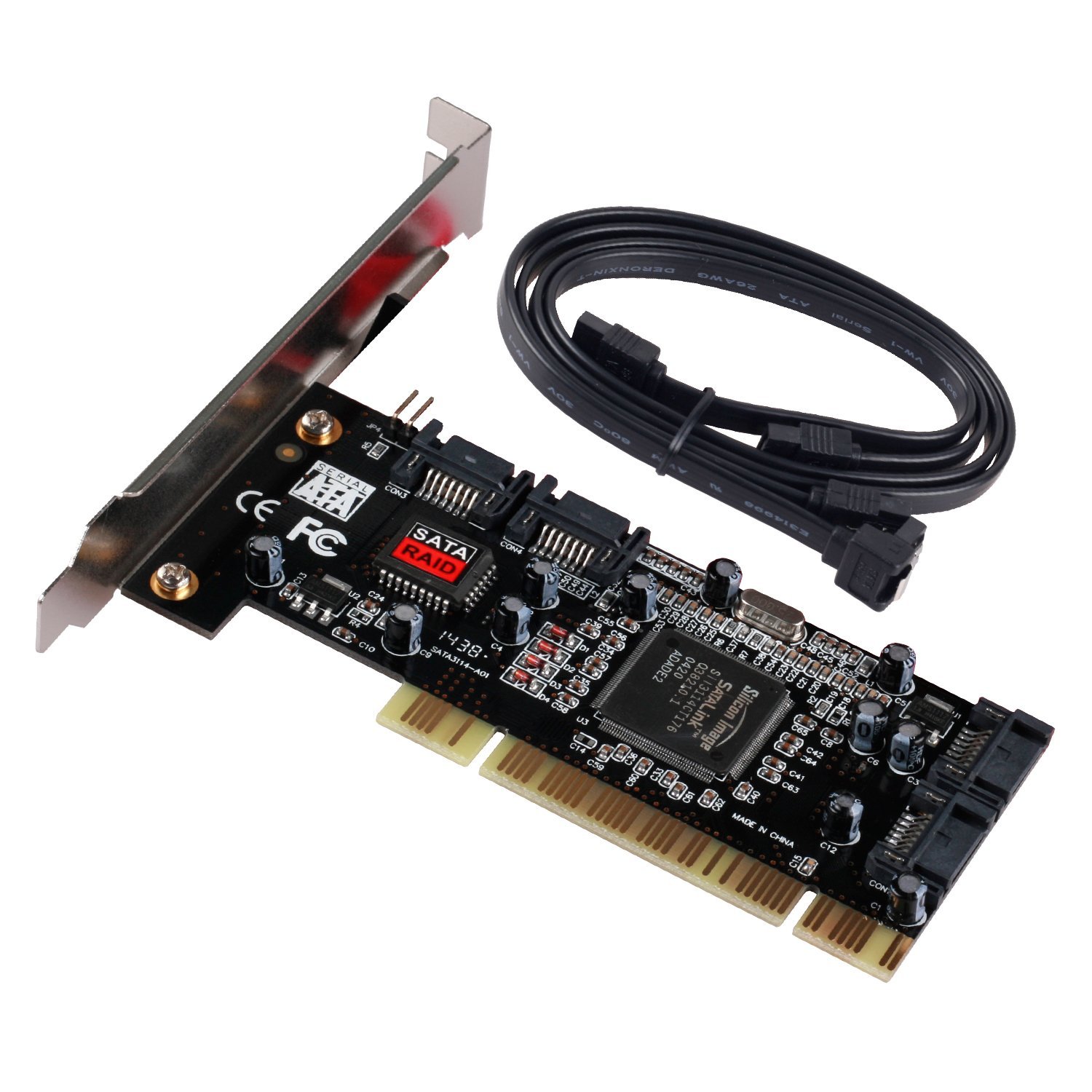

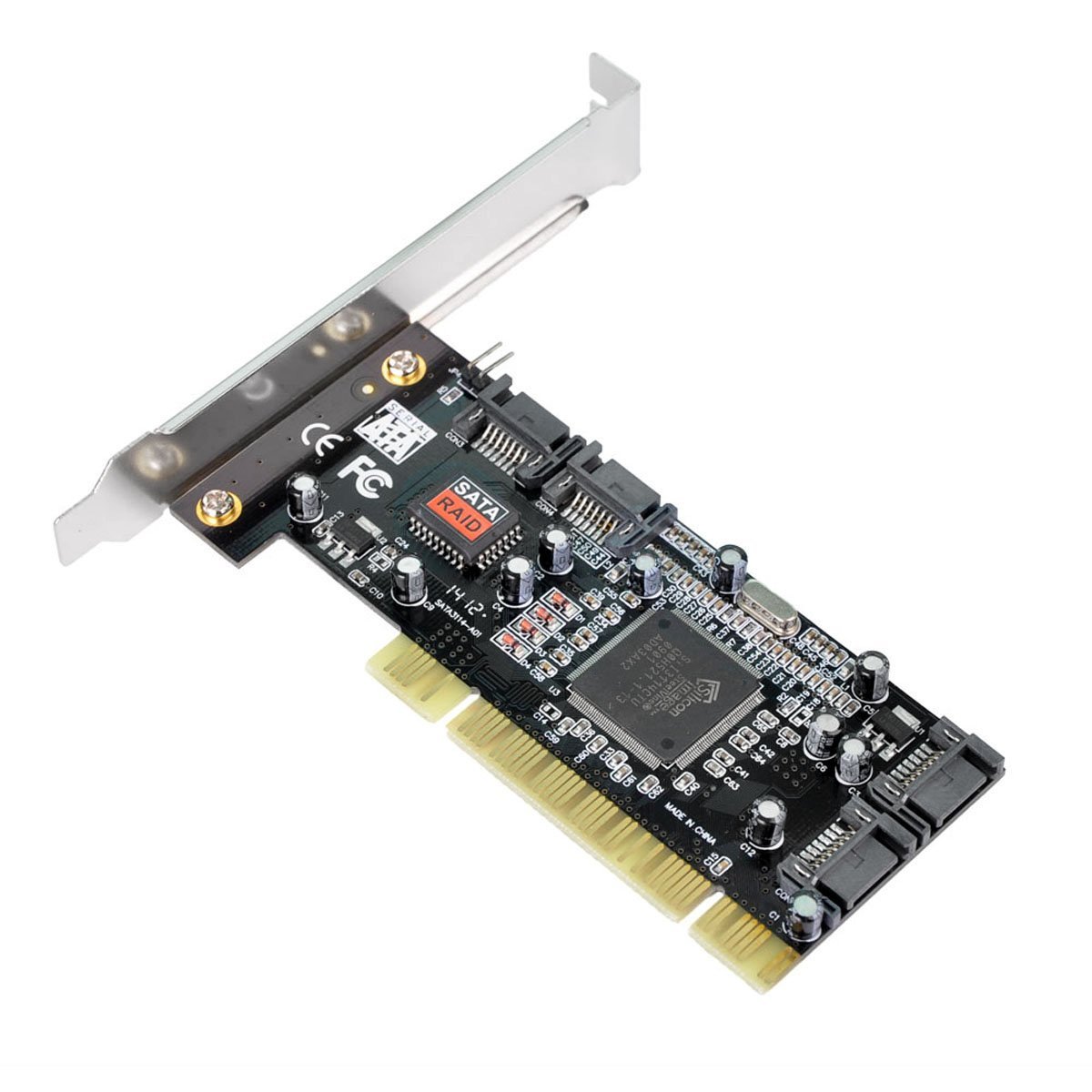

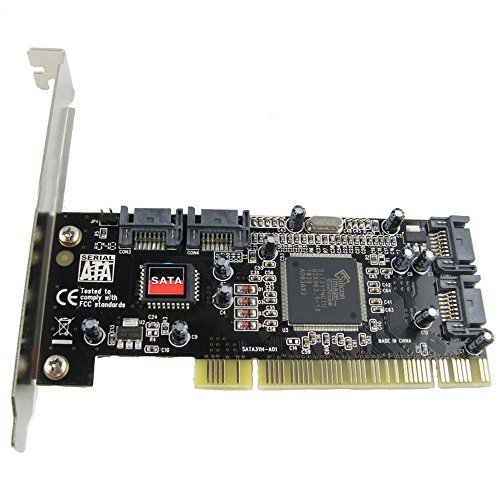

PCI Sata Internal Ports Raid Controller Card (4-ports) Sil3114 Chipset N-S3114-4P
product number N-S3114-4P,
Product Category： PCI I/O Controller
Product Description
-
Features:
PCI specification revision 2.3 compliant w/ 32-bit 33/66Mhz host interface
Serial ATA specification revision 1.0 compliant
Data transfer rate up to 150MB/s. (1.5Gbps)
The card comes with an optional RAID utility which lets you configure a RAID 0 RAID 1 or RAID 0+1 setup on two or more of the SATA ports
You can have one RAID 0 or 1 setup and two independent SATA drives two RAID 0 or 1 sets or a single RAID 0+1 set
Supports two models: 32-bit at66MHZ and 64-bit at 133MHZ
Connect up to 4 SATA drives
Plug & Play connection
Software included
RAID Functions:
Integrated SATA Transport, Link logic, and PHY layer
Supports 4 Independent Serial ATA channels
Supports RAID 0, 1, 5, 0+1, JBOD12
Supports 256-byte transmit and receive FIFOs
Supports programmable and EEPROM, FLASH & EPROM loadable PCI class mode
Supports ATAPI devices: CD-ROM, DVD-ROM, etc
48-Bit sector addressing Virtual DMA
Connectors:
Internal:
4x SATA connectors
External
N/A
Package Includes: 4 Port SATA RAID PCI Card
2 SATA cables
Driver CD
